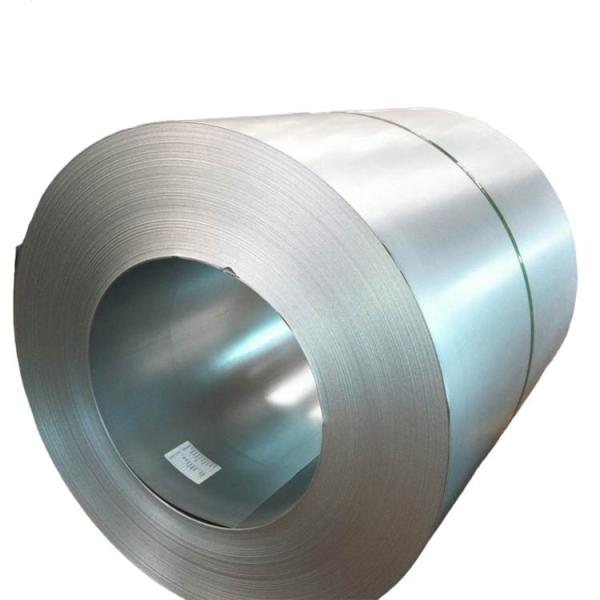

DX51D SGCC coating cold rolled galvanized steel coil for roofing
sheet
Brief Introduction
Galvanized Steel Coil gets coated in layers of zinc because rust
won't attack this protective metal. The most external layer is all
zinc, but successive layers are a mixture of zinc and iron, with an
interior of pure steel. These multiple layers are responsible for
the amazing property of the metal to withstand corrosion-inducing
circumstances. Zinc also protects the steel by acting as a
"sacrificial layer." If rust does take hold on the surface of
Galvanized Steel Coil, the zinc will get corroded first. This
allows the zinc that is spread over the breach or scratch to
prevent rust from reaching the steel. For countless outdoor,
marine, or industrial applications, Galvanized Steel Coil is an
essential fabrication component.
Thickness | 0.13-3.0mm |
Width | Galvanized steel strip:24-600 mm; galvanized steel coil:600-1250mm |
Coil weight | Usually is 3-4.5 tons,the max coil is 10 tons |
Zn coating | 0.13-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2;1.5-6.0 mm is
30-275 g/m2 |
Coil ID | 600-1500 mm,Normal width is 91 4/1000/1219/1250/1500 mm |
Steel grade | DX51D,DX52D,DC01,DC02,SGHC |
Surface | regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry |
Packaging | seaworthy export standard package, or according to the
customers’requirement |
Delivery time | With 15 –25 days after receipt of deposit or L/C |
Market | North/South America, Europe, Asia,Africa,Mid East |
Productivity | 2000 Metric ton /month |
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle
& Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP &
Filming
Mechanical Properties
Grades | Mechanical Property | Coating Adhesion |
Yield StrengthMPa | Tensile StrengthMPa | Elongation% ≥ | Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate
Thickness) |
La=80mm b=20(mm) |
At Following nominal Thickness ( mm) |
≤0.7 | >0.7 | ≤140/140 | >140/140-175/175 | >175/175 |
CS Type C | 140-350 | 270-500 | 20 | 22 | 0a | 1a | 2a |
CS Type A, Type B | 140-300 | 270-420 | 24 | 26 | 0a | 1a | 2a |
FS Type A, Type B | 140-260 | 270-380 | 28 | 30 | 0a | 1a | 2a |
Application
1. Architecture Roofs and outside walls of civilian and industrial
buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine,
refrigerator, television, air conditioner and ventilation system,
explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and
catalytic converter, auto parts & accessories under the frame,
signboard in highway
4. Industrial Instruments Electric control cabinet, industrial
refrigeration equipment, automatic vending machine
